The production standard for electrode densification

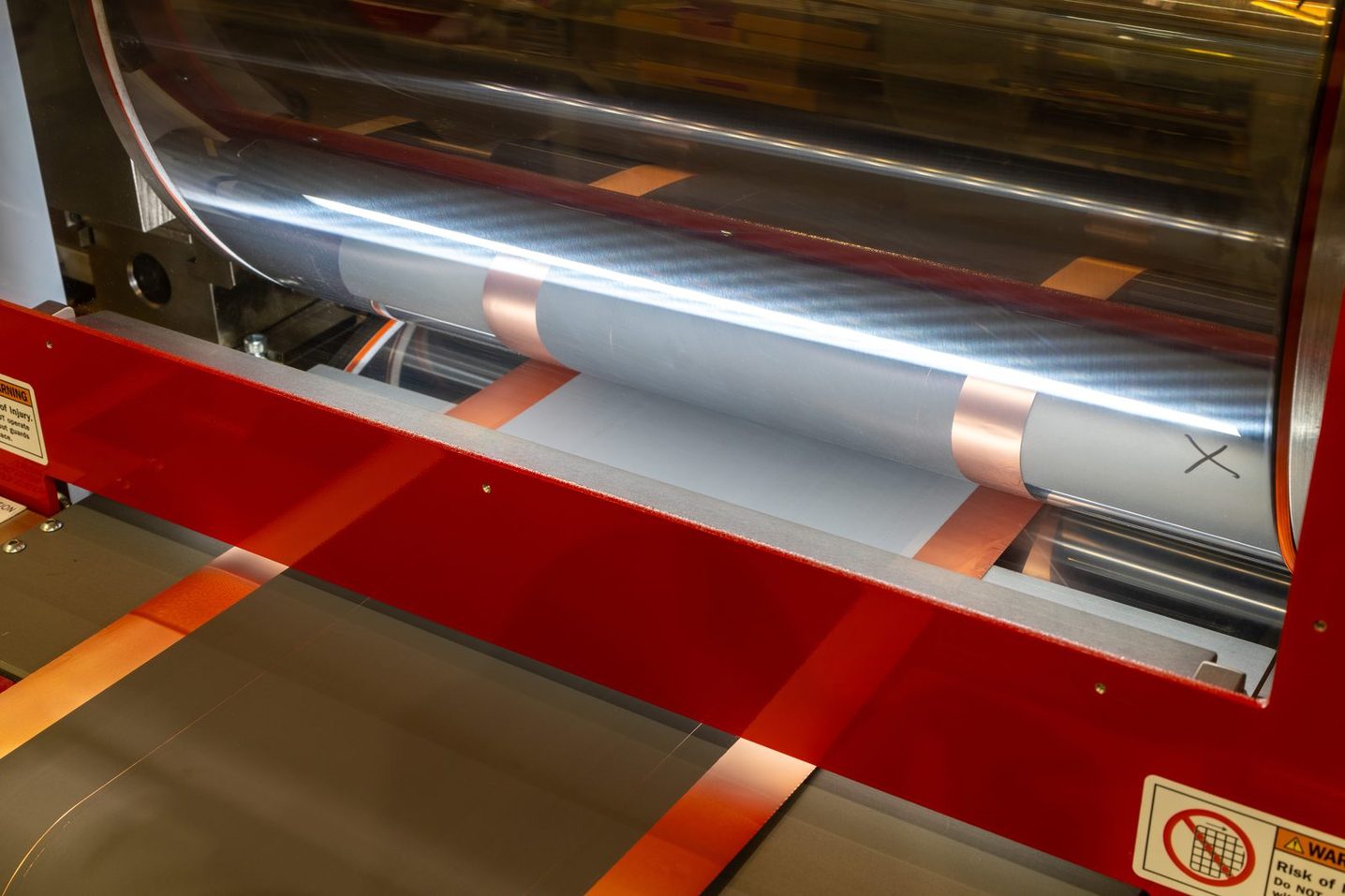

Single nip calenders are IMC's most widely specified calender configuration for battery electrode manufacturing and other high-compression applications. The two-roll design provides direct, controllable compression of the web substrate as it passes through a single nip, with the precision gap control and nip force capability required to achieve consistent thickness and density across the full web width.
The single nip configuration — sometimes called an S-roll for its web path — means the substrate wraps partially around each roll in an S-shaped pattern, providing controlled contact time and ensuring uniform compression at the nip. This configuration delivers the combination of high nip force capability, precise gap control, and manageable web handling that production electrode densification requires.
Why single nip for electrode calendering
Battery electrode calendering is fundamentally a compression-to-target operation. The coated electrode — a layer of active material particles bound together on a thin metallic foil — must be compressed to a specific thickness and porosity. Too little compression leaves excess porosity; too much damages the particle structure and can crack or delaminate the coating from the foil.
The single nip configuration excels at this because it provides a single, well-defined nip where all compression occurs. The gap between the rolls can be set and controlled with precision, and the nip force is distributed uniformly across the full web width. There are no multiple-stage compression effects to compound or interact; the gap and force set at the nip are exactly what the electrode experiences.
How IMC engineers single nip calenders
IMC single nip calenders are built around massive, precision-ground rolls mounted in rigid frame assemblies designed to maintain alignment under extreme nip forces. The rolls are specified for the application — diameter, face width, surface finish, hardness, and material — with options for chrome plating, tungsten carbide coating, or other surface treatments depending on the substrate and compression requirements.
Gap control uses servo-hydraulic positioning with real-time feedback, providing positioning accuracy in the low-micron range. Non-contact thickness gauges can be integrated before and after the nip for closed-loop thickness control — measuring the incoming electrode thickness, comparing it to the target, and adjusting the gap in real time to maintain consistent output thickness regardless of variation in the incoming coating.
Roll heating is available with options including internally circulated thermal fluid, induction heating, and electrically heated rolls. Temperature uniformity across the roll face is held within tight tolerances to prevent tapered compression profiles. IMC heated roll systems are designed for temperature uniformity within tight tolerances across the full face width.
The frame structure is engineered for the specific nip force required by the application. Battery electrode calendering often requires forces in the range of 50-200+ kN per meter of web width, depending on the electrode chemistry and target density. The frame must resist this force without deflection that would compromise gap uniformity.
Process control and automation
IMC single nip calenders integrate with PLC-based control systems providing recipe management, real-time process monitoring, and data logging. Process parameters including gap setting, nip force, roll temperature, line speed, and measured thickness are all available for recipe storage, trend analysis, and quality documentation. For battery applications, this data traceability supports cell manufacturing quality systems.
Applications
- Battery electrode densification (both cathode and anode)
- PTFE sheet and membrane compression
- Filtration media densification
- Other applications requiring precision single-nip compression at production throughput
