The critical step between coating and cell assembly

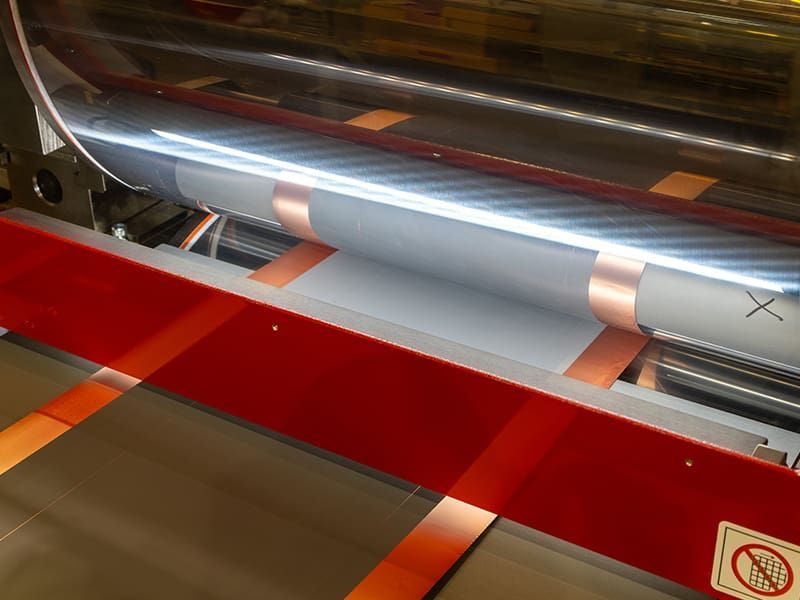

After coating and drying, a battery electrode is a porous layer of active material particles loosely bonded together on a metallic foil. Before it can be assembled into a cell, it must be calendered — compressed to a precise thickness and density that optimizes the electrode's electrochemical performance, mechanical integrity, and dimensional consistency.
Calendering is one of the most critical steps in electrode manufacturing because it directly affects the cell's energy density, power capability, cycle life, and safety. An electrode that is under-calendered has excess porosity, reducing the amount of active material in a given cell volume and limiting energy density. An electrode that is over-calendered has crushed pore structure, impeding electrolyte penetration and ion transport, which reduces power capability and accelerates degradation during cycling.
The target is a specific balance between density and porosity — and that balance must be achieved uniformly across the full width of the electrode, from the center of the roll to the edges, and consistently from the beginning of a production campaign to the end. This is the engineering challenge that IMC calenders are designed to solve.
What makes electrode calendering demanding
The substrates are thin and fragile. Copper foil (anode current collector) is typically 8-12 microns thick; aluminum foil (cathode) is 12-20 microns. The coating layer adds 50-150 microns per side depending on the cell design. Compressing this assembly with the forces required for densification — often 50–200+ kN per meter of web width — without damaging the foil, cracking the coating, or creating thickness variation requires precise force distribution, uniform gap control, and careful web handling.
The electrode enters the calender as a relatively compliant material and exits as a significantly more rigid one. This change in mechanical properties during compression affects web tension, tracking, and downstream handling. The calender must manage this transition smoothly while maintaining the dimensional accuracy the downstream slitting and cell assembly operations require.
How IMC engineers electrode calenders

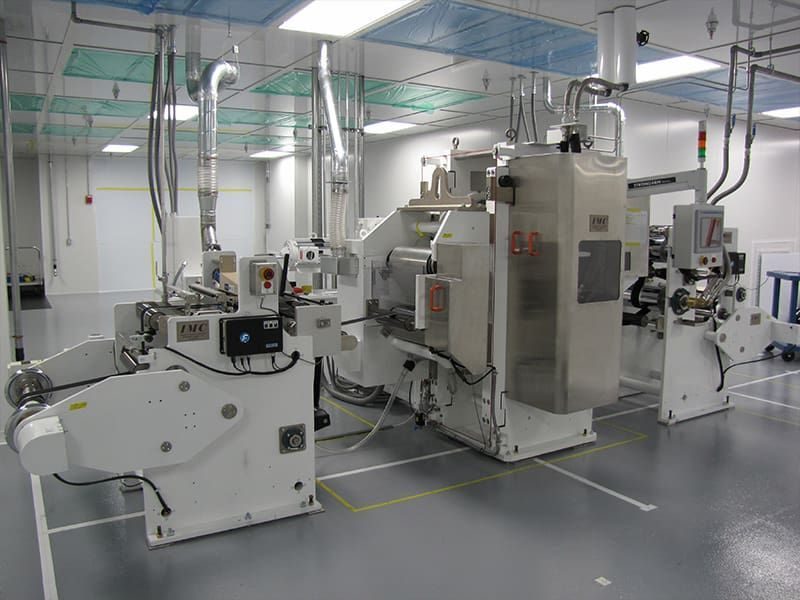

IMC electrode calenders use precision-ground rolls with surface finishes and hardness values specified for electrode contact. Gap control uses servo-hydraulic positioning with real-time feedback for micron-level accuracy. Non-contact thickness gauging before and after the nip provides closed-loop thickness control, automatically adjusting the gap to maintain target output thickness regardless of incoming coating variation.
Roll heating is available for electrode chemistries that benefit from warm calendering — some cathode formulations densify more uniformly when the electrode is heated to 60–100°C or above during compression. IMC heated roll systems maintain temperature uniformity across the full face width to prevent tapered compression profiles.
Web handling before and after the calender is engineered for the thin metallic foils and compressed electrodes that are particularly sensitive to tension variations and roller contact. Tension is independently controlled on the infeed and outfeed, with dancer-based feedback to maintain constant tension through the nip.
The control system provides recipe management for storing validated calendering parameters — gap setting, nip force, line speed, roll temperature, and measured thickness — with data logging for quality documentation and process traceability.
Integration with the electrode production line
IMC designs electrode calenders as standalone systems or as integrated sections of complete electrode manufacturing lines that include coating, drying, calendering, and slitting. When integrated, the calender's controls, web transport, and tension management are coordinated with the upstream and downstream equipment as a unified system.
From lab to production
IMC's laboratory in Birmingham is equipped with lab-scale calendering systems for electrode process development. Customers can bring coated electrode samples and work with our engineers to establish calendering parameters before specifying production equipment. This reduces commissioning time and process risk on the production machine.
